5787683-1
Manufacturer:
TE Connectivity
Mfr.Part #:
5787683-1
Datasheet:
Description:

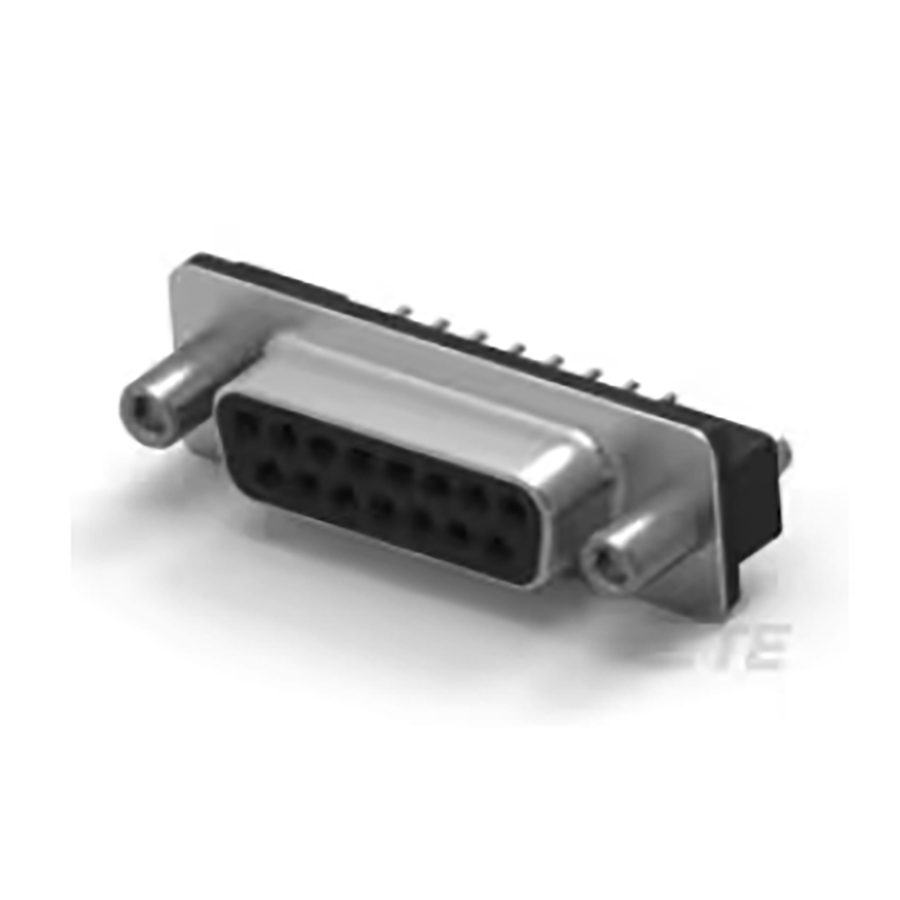

D-Sub Connectors Through Hole Receptacle Number of Positions:15 Solder Female
| Parameter | Value |
|---|---|
| Length | 39.14 mm |
| Width | 12.55 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Height | 12.42 mm |
| Material | Metal |
| Packaging | Tube |
| Voltage Rating | 125 V |
| Depth | 12.55 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Plating | Gold |
| Lead Length | 3.175 mm |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2.74 mm |
| Type | Receptacle |
| Number of Terminals | 15 |
| Current Rating | 6 A |
| Max Voltage Rating (DC) | 250.25 kV |
| Flammability Rating | UL94 V-0 |
| Approvals | UL |
| Orientation | Vertical |
| Lifecycle Status | Production (Last Updated: 4 days ago) |
| Color | Black |
| Gender | Female |
| Number of Contacts | 15 |
| Hole Diameter | 3.0734 mm |
| Max Supply Voltage (DC) | 250 V |
| Connector Type | Receptacle |
| Contact Type | Signal |
| Number of Positions | 15 |
| Number of Rows | 2 |
| Row Spacing | 2.8448 mm |
| Housing Material | Polyester |
| Number of Ports | 1 |
| Circuit Application | Signal |
| Max Voltage Rating (AC) | 250 V |
| Max Supply Voltage (AC) | 250 V |
| Housing Color | Black |
| Plating | Tin |
| Body Plating | Tin |
| PCB Mounting Orientation | Vertical |
| PCB Thickness | 1.57 mm |
| Contact Shape | Round |
| Preloaded | Yes |
| Shell Material | Steel |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 4 days ago) |
| Sealable | No |
| Mating Connector Lock | Without |
| PCB Mount Retention | With |
Stock: 506
Distributors
pcbx
pcbxUnit Price$9.17801
Ext.Price$9.17801
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $9.17801 | $9.17801 |
| 10 | $8.56070 | $85.60700 |
| 25 | $7.98491 | $199.62275 |
| 50 | $7.44785 | $372.39250 |
| 100 | $6.94691 | $694.69100 |
| 300 | $6.47966 | $1943.89800 |
| 500 | $6.04384 | $3021.92000 |
| 1000 | $5.63745 | $5637.45000 |
